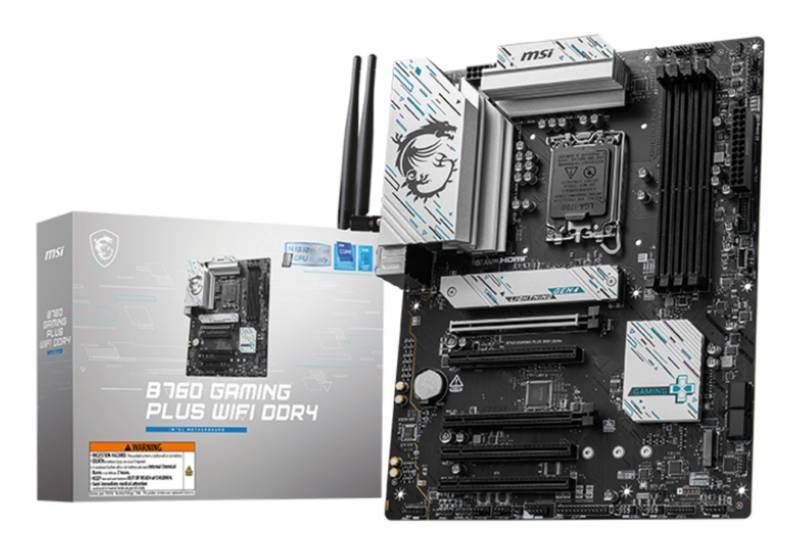

MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
60.03$
1000 in stock
Sold: 0
Available: 1000
- Support Intel? CoreTM 14th/ 13th/ 12th Gen Processors, Intel? Pentium? Gold and Celeron? Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel? Core 14th /13th /12th Gen processors.
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel? Core 14th /13th /12th Gen processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
DIY 2.0 ?C INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ??keep-out-zone?? allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
| Number of M.2 (M) slots | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 128 GB |
| Audio output channels | 7.1 channels |
| Number of HDDs supported | 4 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 0, 1, 5, 10 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel? Celeron?, Intel? Pentium? Gold |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz |
| Maximum internal memory | 128 GB |
| ECC ??ompatibility | Non-ECC |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Audio chip | Realtek ALC897 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 slots | 2 |
| PCI Express x1 slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Width | 243.8 mm |
| Depth | 304.8 mm |
