Categories: Memory Modules

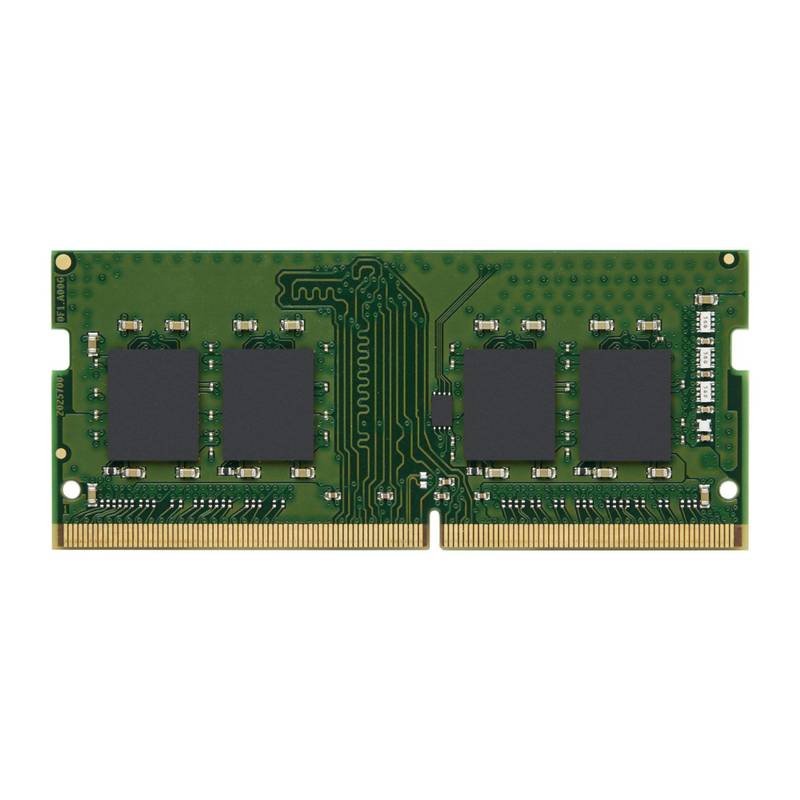

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s
101.45$
1000 in stock
Sold: 0
Available: 1000
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18?? (30.00mm)
- RoHS Compliant and Halogen-Free
ValueRAM, Kingston??s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
| Memory voltage | 1.2 V |
|---|---|
| Country of origin | Taiwan |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Component for | Laptop |
| Memory form factor | 260-pin SO-DIMM |
| CAS latency | 22 |
| Lead plating | Gold |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| ECC | No |
| Internal memory type | DDR4 |
| Harmonized System (HS) code | 84733020 |
| Memory data transfer rate | 3200 MT/s |
| Operating temperature (T-T) | 0 – 85 ??C |
| Storage temperature (T-T) | -55 – 100 ??C |
| Width | 69.6 mm |
| Height | 30 mm |
