Categories: Memory Modules

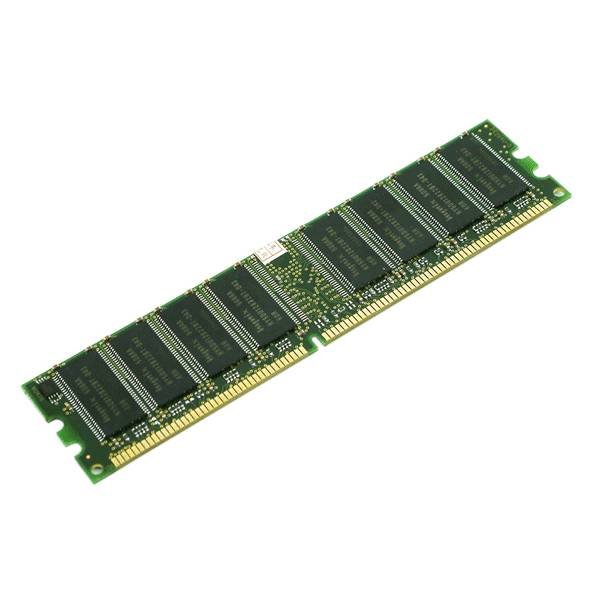

Kingston Technology ValueRAM memory module 4 GB 1 x 4 GB DDR4 2666 MT/s
152.76$
1000 in stock
Sold: 0
Available: 1000
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23?? (31.25mm)
- RoHS Compliant and Halogen-Free
ValueRAM’s KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Memory voltage | 1.2 V |
|---|---|
| Backlight | No |
| Product colour | Berry, Green |
| Cooling type | Heatsink |
| JEDEC standard | Yes |
| Country of origin | Taiwan |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 4 GB |
| Internal memory | 4 GB |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 19 |
| Lead plating | Gold |
| Module configuration | 512M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Memory channels | Single-channel |
| Memory ranking | 1 |
| ECC | No |
| Internal memory type | DDR4 |
| Programming power voltage (VPP) | 1.2 V |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Harmonized System (HS) code | 84733020 |
| Memory data transfer rate | 2666 MT/s |
| Operating temperature (T-T) | 0 – 85 ??C |
| Storage temperature (T-T) | -55 – 100 ??C |
| Width | 133.3 mm |
| Height | 31.2 mm |
