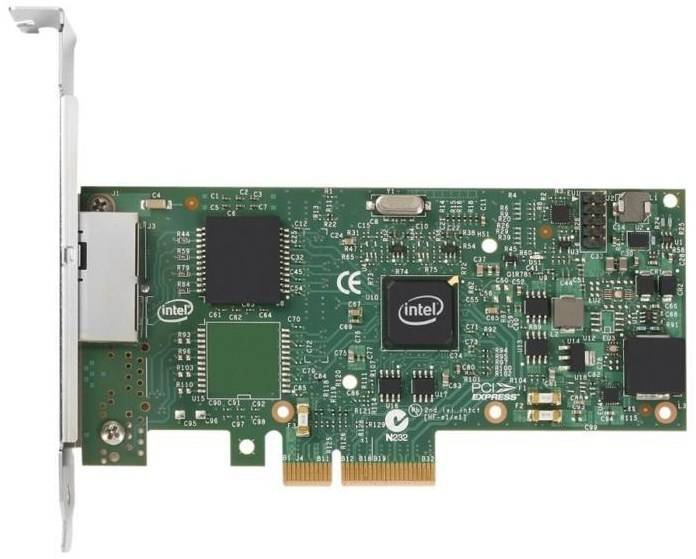

Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s

238.66$

1000 in stock

Sold: 0
Available: 1000
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel? Ethernet Power Management
Intel? Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Internal

Yes

PCI version

2.1

Ethernet LAN (RJ-45) ports

2

PCI Card form factor

Full-height (low-profile)

Interface

Ethernet

Host interface

PCI Express

Connectivity technology

Wired

Full duplex

Yes

Maximum data transfer rate

1000 Mbit/s

Chipset

Intel? I350

Ethernet LAN

Yes

Cabling technology

10/100/1000BaseT(X)

Networking standards

IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Supported network protocols

TCP, UDP, IP

Maximum operating distance

100 m

LAN controller

Intel? I350

Ethernet LAN data rates

1000 Mbit/s

Interface type

PCIe v2.1 (5.0 GT/s)

Speed & slot width

5.0 GT/s, x4 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Storage Over Ethernet

iSCSI, NFS

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991.B.4.A

Commodity Classification Automated Tracking System (CCATS)

NA

Thermal Design Power (TDP)

4.4 W

Product type

Network Interface Card

Processor family

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)

Status

Launched

Network interface card type

Server

Network interface card cable medium

Copper

Market segment

Server

Launch date

Q3'14

Last change

63903513

Component for

Server

Product family

Intel Gigabit server adapter

Product series

Intel? I350

Product codename

Powerville

Power consumption (typical)

5 W

Operating temperature (T-T)

0 – 55 ??C

Storage temperature (T-T)

-40 – 70 ??C

Storage relative humidity (H-H)

35 – 90%

Width

68.9 mm

Depth

135.4 mm

Ethernet adapter ARK ID

84804

Cable type

Cat 5 up to 100m

Controller type

Intel I350

Cabling type

Cat 5 up to 100m

Bracket height

Low-Profile (LP) / Full-Height (FH)
